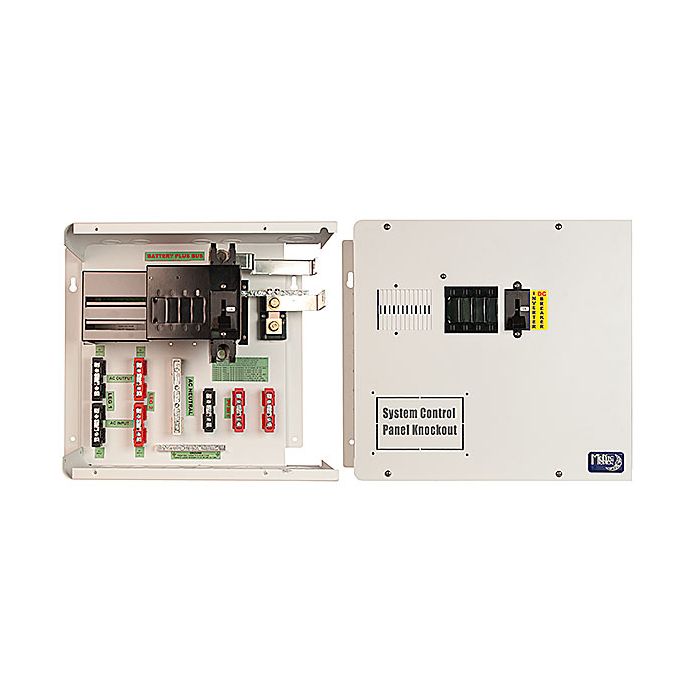

MidNite Solar E-Panel for a single Schneider Electric Conext SW Inverter/Charger 250A (SKU Part Number MNE250SW)

E-Panel for a single Schneider Electric Conext SW inverter/charger. The SW inverter is mounted directly to the right of the E-Panel. Available with the 175 amp breaker (MNE175SW) for the SW2524 or the SW4048 or with the 250 amp breaker (MNE250SW) for the SW4024.

Features

Inverter battery breaker, knockouts for up to 6 din rail mount AC or DC breakers (or the optional Bypass Kit) and 4 panel mount or DC-GFP80 breakers. Massive tin plated copper bus bars directly connect to the SW’s battery terminals, bus bars for AC inputs, AC output, neutral, ground, PV + in, PV- in, Bat +, Bat-, 500 amp shunt, Location to mount 2 Charge controllers to the top. There are knockouts that correspond to the 1 inch knock outs in the charge controller.

• Main Breaker Current Rating - 250
• Number of spaces - 10
• Environmental Rating - Type 1 (Indoor)
• Max. Wire Size - 4/0 AWG
• Max. AC Voltage - 240VAC
• Max. DC Voltage - 300VDC
• Warranty - 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA
