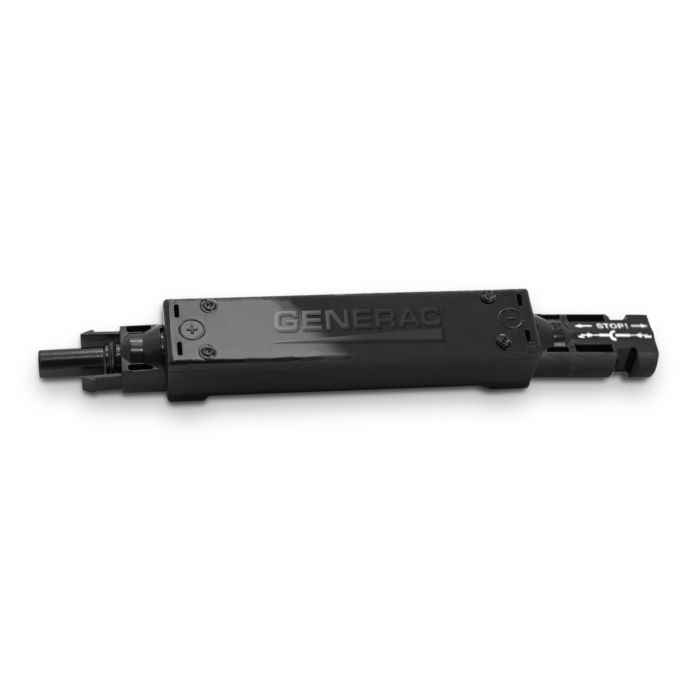

Generac SnapRS - Inline Disconnect Switch (SKU Part Number APKE00011)

The Generac SnapRS Inline Disconnect Switch is built to provide panel-level rapid shutdown capabilities in solar power systems. Designed for seamless integration with Generac's PWRcell inverters and PV Link optimizers, the Generac SnapRS provides users with a streamlined solution for improving system safety and meeting strict electrical codes.

The primary function of the Generac SnapRS is to rapidly isolate individual solar panels during emergency shutdowns. When a rapid shutdown is initiated—either manually or automatically, when power is lost—the incline disconnect switch disconnects each panel from the array, reducing the system voltage within seconds. This swift voltage reduction is extremely important for first responder safety. It also helps ensure your system is compliant with the requirements of the National Electrical Code (NEC) for rapid shutdown systems. This device even achieves rapid shutdown compliance without needing additional hardware or complex digital communications, which simplifies both the installation and the operation of your system.

Installing the Generac SnapRS is incredibly straightforward. Each unit is designed to snap (as the name implies) directly onto the negative lead of a solar panel, eliminating the need for extra mounting hardware or intricate wiring. This plug-and-play approach reduces labor costs, but it also minimizes potential points of failure, improving overall system reliability. The device's compact dimensions—approximately 7 inches in length and 1 inch in both width and height—and lightweight design make it easy to handle during installation.

In terms of performance, the Generac SnapRS Inline Disconnect Switch is built to endure harsh environmental conditions. It boasts a NEMA 6P enclosure rating, giving it superior protection against water intrusion, up to and including temporary submersion, and resistance to corrosion. The device operates efficiently across a broad temperature range, from -40 degrees Fahrenheit to 158 degrees Fahrenheit, ensuring reliable performance in even the harshest outdoor conditions. With a maximum input current of 13A and a peak efficiency of 99.9%, the Generac SnapRS maintains optimal efficiency while providing critical safety functions.

The Generac SnapRS's role in a solar power system is pivotal to safety and compliance. By enabling rapid shutdown at the panel level, it enhances the safety of the entire system. If you’d like to learn more about this inline disconnect switch and how it fits into your solar power system, contact PowerStore today.
