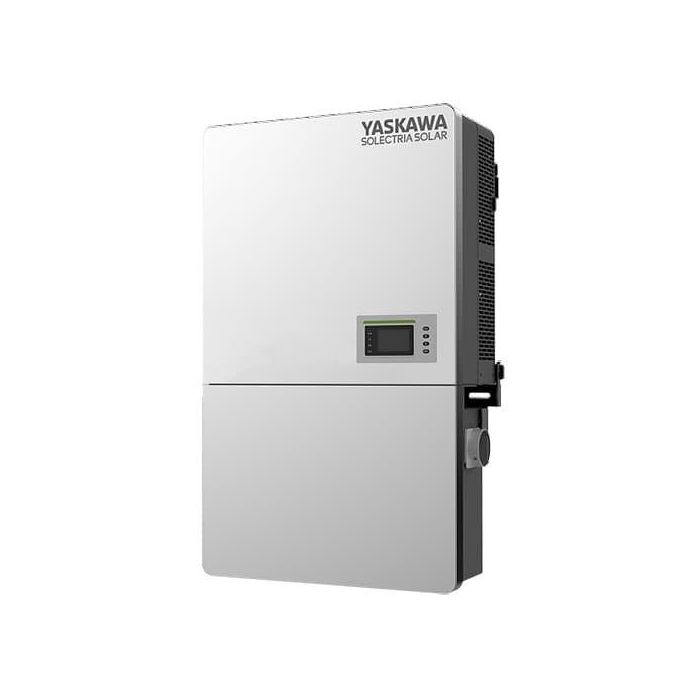

Solectria Inverter, Transformerless, 50kW, 1000VDC Max Input, 480VAC, 10 Year Warranty [MUST ORDER WIRING BOX]. UL1741SB certified Rule 21 compliant.

Yaskawa Solectria Solar’s PVI-50TL-480 and PVI-60TL-480 are transformerless 3-phase inverters, ideal for rooftops, carports and ground-mount PV systems

The PVI-50TL-480 and PVI-60TL-480 come standard with AC and DC disconnects, three MPPTs, and a wiring box with 15 fuse positions. For rooftop PV systems, both Module-Level Rapid shutdown (MLRSD) wirebox models provide PV Rapid Shutdown System (PVRSS) compliance and include a built-in SunSpec compliant powerline communication transmitter. Rapid-shutdown-ready wireboxes provide compatibiity with APsmart rapid shutdown products. Yaskawa Solectria Solar’s family of PVI-50/60TL-480 inverters, including standard wireboxes and the rapid-shutdown ready wirebox models, provides flexibility and convenience unmatched in the industry.

FEATURES
Certified to IEEE 1547-2018 and UL 1741SB
• Dual rated listing allows selection of either 50/60 kVA (factory default) or 55/66 kVA (allowing full rated power down to ±0.91 PF)
• Wirebox models with builtin SunSpec compliant transmitters for Module-Level Rapid Shutdown for simple, safe NEC compliance
• UL Listed as a PV Rapid Shutdown System with APsmart
• Integrated UL-listed Arc-Fault protection
• 15-90° mounting angle allows low-profile rooftop installations
• 3 MPPT’s with 5 inputs each for PV array flexibility
• Industry-leading DC/AC ratio of 1.8 (50TL) and 1.5 (60TL)
• Integrated AC and DC disconnects
• Remote firmware upgrades and diagnostics
• NEMA 4X outdoor-rated enclosure with proven performance
• Copper and Aluminum compatible AC connections
• Compatible with Bifacial PV Modules
