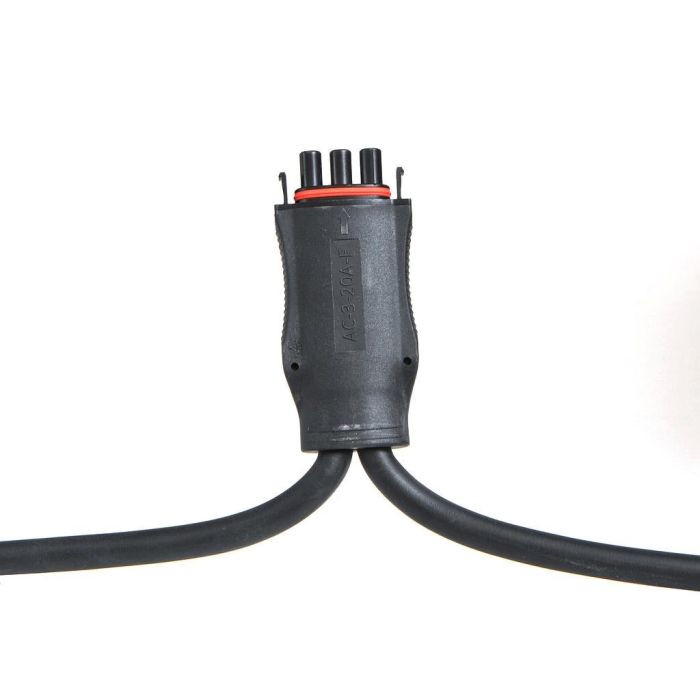

APsystems Trunk Cable for DS3/QS1 - (About 4 Meters) (SKU Part Number Y3 Bus Cable - 4M)
Become a dealer! Get access to better training, pricing and more!APsystems Trunk Cable for DS3/QS1 - (About 4 Meters) (SKU Part Number Y3 Bus Cable - 4M)
Quantity 1 = 1 Connector
Cut per order, non-returnable.
-
APsystems Trunk Cable for DS3/QS1 - (About 4 Meters) (SKU Part Number Y3 Bus Cable - 4M)$28.05
-
Information
APsystems 4-Meter Y3 AC Bus Trunk Cable connects the microinverters in a branch into a single output. Use it with YC600Y and QS1 microinverters.
The Y3 Bus Cable is a continuous length of insulated and UV resistant 2.5mm2 12AWG cable. Every 4 meters, the cable features a pre-assembled connector plug for one microinverter.
When you are planning your layout, consider one connector for every microinverter. That is equivalent to every 2 solar panels when using the YC600Y inverters and every 4 panels when working with the QS1 units. Use the Y-CONN cap (sold separately) to seal any unused connectors.
Cable gauge: 12AWG
Cable diameter: 2.5mm
Maximum current: 20A
YC-4M length: 4 meters (recommended for YC600Y and QS1 )
3 internal wires including ground
Cable type: U-1000-RO2V (TC-ER)
CSA / TUV certified
1 Connector included
