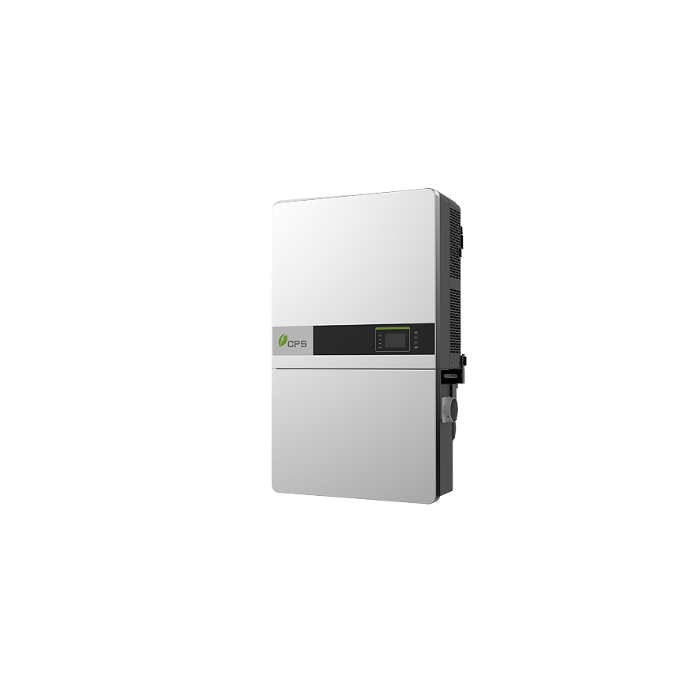

Chint Power Systems 50kW 3Phase String Inverter, 3 MPPT, RSD Wirebox, 1000VDC for North America

The 50 & 60 kW (55 & 66 kVA) medium-power CPS three-phase string inverters are designed for ground mount, large rooftop and carport applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.8% peak and 98.5% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 50/60KTL products ship with either the Standard Wire-box or the Rapid Shutdown Wire-box, each fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown Wire-box enables PVRSS certified module-level rapid shutdown when used with APS RSD-S-PLC/RSD-D products. The CPS FlexOM
Gateway enables monitoring, controls and remote product upgrades.

Key Features

• NEC 2017/2020 PVRSS certified for rapid shutdown
• 55 & 66 kVA rating allows max rated active power @ ±0.91 PF
• Selectable max AC apparent power of 50/55 kVA and 60/66 kVA
• NEC compliant and UL listed arc-fault circuit protection
• 15-90° mounting orientation for low profile roof installs
• Optional FlexOM Gateway enables remote firmware upgrades
• Integrated AC and DC disconnect switches
• 3 MPPTs with 5 inputs each for maximum flexibility
• NEMA Type 4X outdoor rated enclosure
• UL 1741-SA certified to CA Rule 21, including SA8 - SA18
• UL 1741-SB and IEEE 1547-2018 certified
• Separable wire-box design for fast service
• Standard 10-year warranty with extensions up to 20 years
