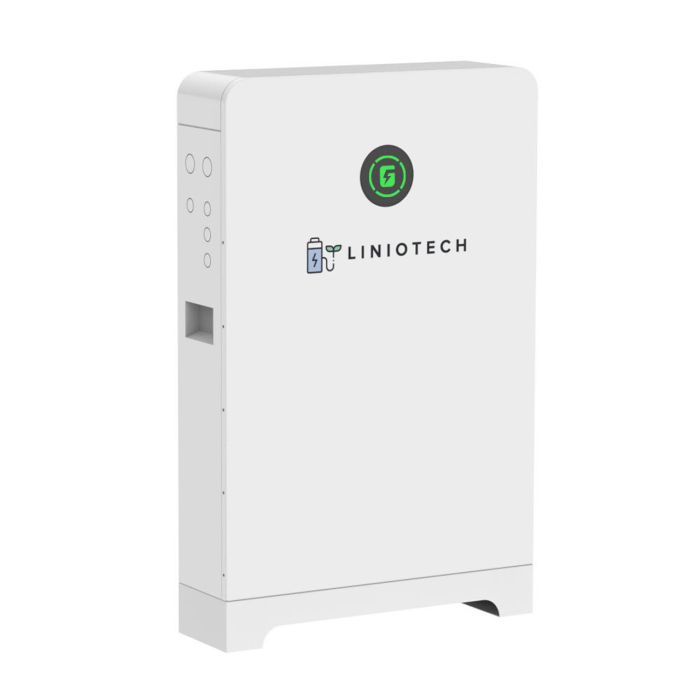

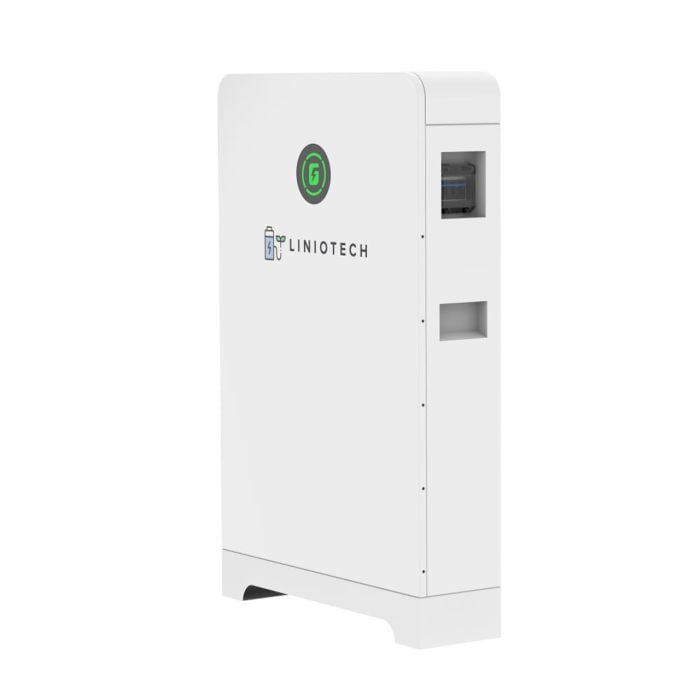

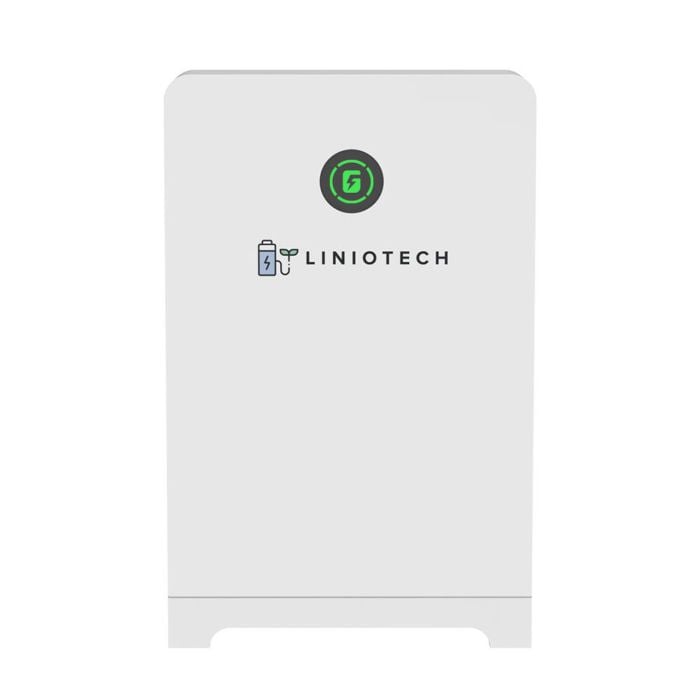

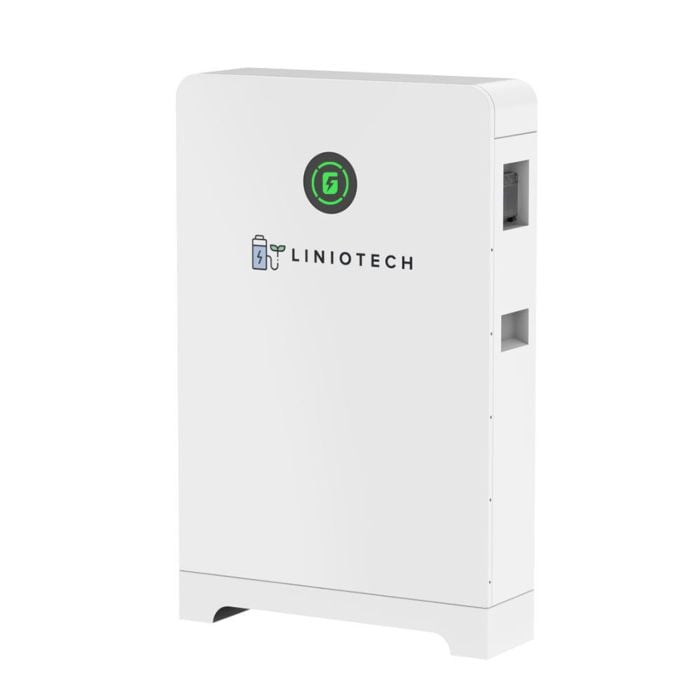

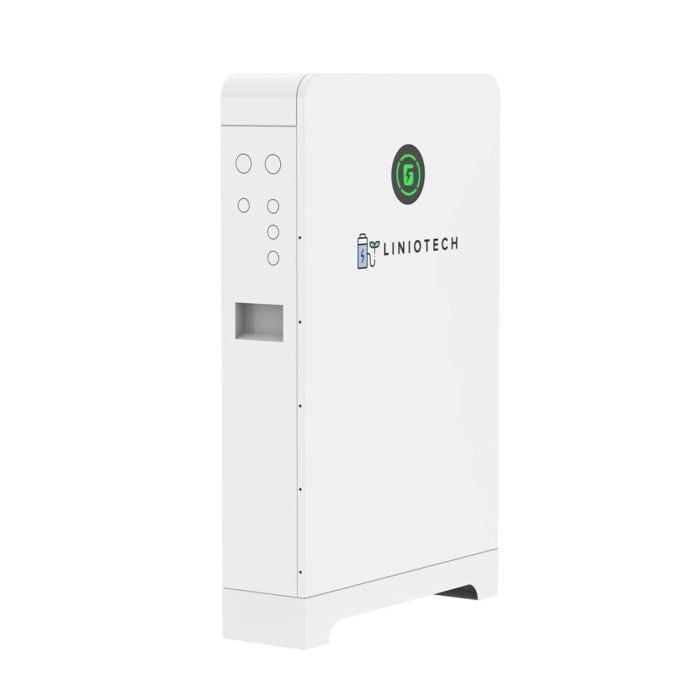

LINIOTECH 14.33KWH LiFePO4 48V 280Ah Battery Storage IP65 Outdoor Rated Floor Mount
Take your off-grid or hybrid solar system to the next level with the LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Storage System—a rugged, high-capacity solar battery backup solution designed for indoor and outdoor use. Built with premium lithium iron phosphate cells and a weather-resistant IP65-rated enclosure, this floor-mounted unit offers long-lasting, safe energy storage for residential or commercial installations.
Fully certified for U.S. and California compliance, the LINIOTECH battery is tested and approved to UL1973, UL9540, UL9540A standards, and is CEC listed, making it ideal for projects that require strict code adherence. It's also listed as a preferred battery partner by Sol-Ark and works flawlessly with Sol-Ark hybrid inverters.
Whether you're looking to store excess solar energy, ensure backup power during outages, or reduce electricity costs with peak shaving, LINIOTECH Energy delivers top-tier performance and seamless integration.
? Top 5 Product Highlights
-
✅ Indoor & Outdoor Rated (IP65 Protection): All-weather enclosure is engineered for installation in garages, mechanical rooms, or outdoors—perfect for diverse climate conditions.
-
✅ Fully UL Certified with California Compliance: Meets UL1973, UL9540A, and UL9540 with Sol-Ark testing, plus CEC listing for eligibility in California energy incentive programs.
-
✅ Floor Mount Design for Easy Installation: Space-saving, ground-mounted battery system—no complex wall brackets or racking required.
-
✅ Sol-Ark Certified Partner: Officially listed by Sol-Ark as a preferred battery partner, ensuring optimal compatibility with Sol-Ark hybrid inverter systems.
-
✅ 14.33kWh Capacity / 48V 280Ah: Ample power storage for whole-home backup, off-grid living, or energy cost optimization with time-of-use billing.
48V lithium battery for solar, LiFePO4 solar battery 14.33kWh, floor mount battery storage, UL9540 certified battery, UL1973 battery, CEC listed battery, outdoor rated solar battery, Sol-Ark compatible battery, California compliant solar battery, off-grid battery storage.
| MODEL NO |
LTN051280A-B-GBP2 |
|
| Battery Chemistry | LiFePO4 | |
|
Capacity (Ah) |
280 |
|
| Scalability | Max.16pcs in parallel (262kWh) | |
|
Nominal Voltage (V) |
51.2 | |
| Operating Voltage(V) | 46-56 | |
|
Energy (kWh) |
14.34 | |
|
Recomend Discharge Energy (80% DOD) (kWh) |
13.10 | |
|
Charge/Discharge Current (A) |
Recommend |
100 |
|
Max. |
150 | |
|
Peak(2mins,25℃) |
200 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 80% | |
| Dimension (W/H/D,mm) | 900*675*200 | |
|
Weight Approximate (kg) |
128.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
| 2 LED (working, alarming, protecting) | ||
|
IP Rating of Enclosur |
IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
|
Storage Temperature |
0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥10000 | |
| Installation | Wallmounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 12 years | |
| Life Cycle Power During Warranty Period |
89.68MWh@80% EOL |
|
| Certification |
UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
|
