Midnite Solar General Use Powder Coated Aluminum Small Enclosure (SKU Part Number MNBIGBABY)

Midnite Solar General Use Powder Coated Aluminum Small Enclosure (SKU Part Number MNBIGBABY)
SKU
MNBIGBABY

Inventory Status: Ships in 2-3 Weeks

Learn more about Midnite Solar General Use Powder Coated Aluminum Small Enclosure (SKU Part Number MNBIGBABY)

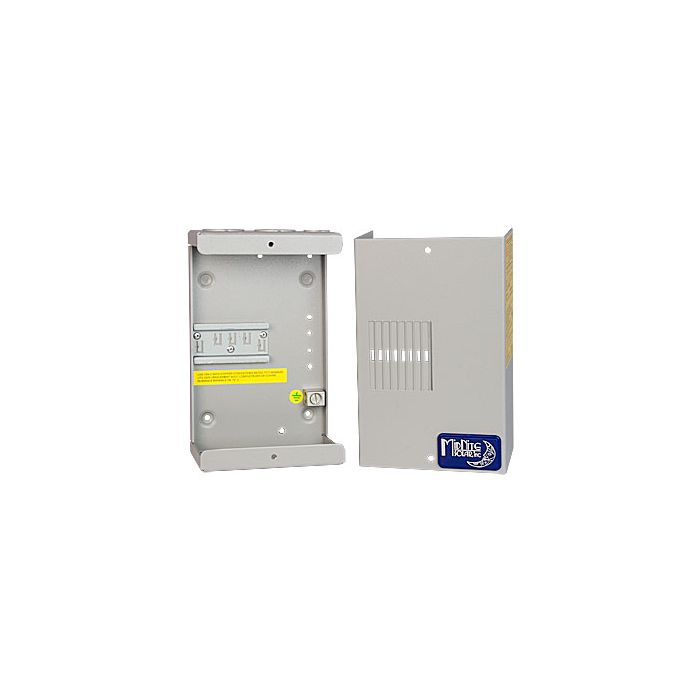

The original Baby box has been a huge success in filling an industry need. We have created an enclosure called the Big Baby to over come the Baby Box smallness allowing for a ETL listed 4 position din rail box. This box is about twice as wide as the baby box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar. A dimensioned drawing is under documents on our website. FEATURES:

  • Environmental Rating - Type 1 (Indoor)
  • Big Baby's DIN rail accepts up to 4 breakers (not included)
  • Quad accepts up to 4 panel mount breakers (not included)
  • Breakers: 1-63A
  • Max. Wire - breakers 6 AWG
  • Max. AC Voltage - 277VAC
  • Max. DC Voltage - 300VDC
  • 5 Year Warranty
  • Listed by ETL for US & Canada
  • Made in the USA
