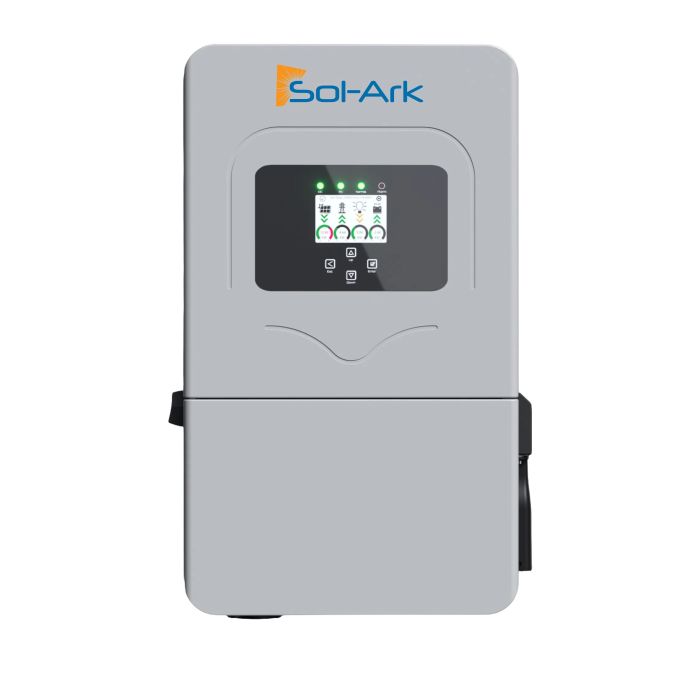

Sol-Ark 12KW 120/240V/ 208V. 100A passthrough, 3MPPT . Compatible with LV batteries.
- SKU
- 12K-2P-LL
Learn more about Sol-Ark 12KW 120/240V/ 208V. 100A passthrough, 3MPPT . Compatible with LV batteries.
More Power. Less Space. Better Value.
Built for budget-conscious projects, the Limitless 12K Hybrid Inverter delivers resilient backup power and advanced energy management in one compact, powerful platform. Capable of delivering 12kW to the grid or 10kW of continuous backup power from batteries, it easily supports loads such as mini-split A/C systems, well pumps, kitchen appliances, furnace blowers, and lighting.
Designed for flexibility and maximum solar utilization, the Limitless 12K supports both DC and AC solar coupling, making it ideal for new installations and retrofit applications alike. With 100A grid passthrough, plus integrated Smart Load control, and generator support through the multifunction GEN port, the Limitless 12K provides a reliable foundation for energy independence and dependable home backup power.
Cost-Effective Home Backup
- 12 kW 120/240 VAC
- 10 kW AC from Batteries
- 100A Grid Passthrough
Multiple Solar Options
- 3x MPPT 19.2 kW
- 32A Per MPPT
- 2x PV Strings Per MPPT
- 14 kW AC Coupling
- Rapid Shutdown Control
Flexible Battery Choice
- 220A Battery Charger
- 48V Battery Port
- UL 9540 Options
Seamless Grid Interaction
- 5ms Transfer Time
- Multi-Season Time-of-Use
- Virtual Power Plant Ready
- Peak Shaving
AC GEN Port
- Generator Input
- AC Coupled PV
- AC Smart Load Functionality
