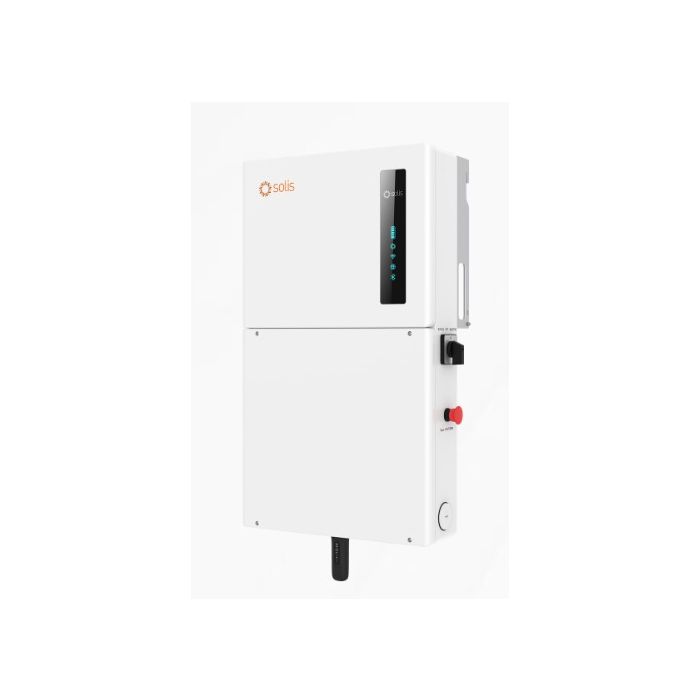

Solis S6 Hybrid Inverter 11.4kW Single Phase Four MPPT with APS Transmitter

Solis Residential High Voltage Hybrid Energy Storage Inverter

Highly Flexible

• Able to supply a wide range of continuous backup power in the event of a grid outage
• Generates 120/240V backup power without an external autotransformer
• Compatible with multiple battery brands, providing up to 150kWh of storage capacity per inverter
• Multiple energy storage working modes to satisfy various use cases and lifestyles
• Allows up to ten (10) inverters to be stacked in parallel for maximum scalability and flexibility

Efficient Performance

• Maximum PV input current up to 16A per string
• Generates up to 50A/11.4kW of continuous backup power with up to 76A for ten seconds
• Backup transfer (switch) time is <10ms
• DC to DC battery charging for optimal use of PV-generated energy
• Optional module-level optimization & monitoring

Intelligent Design

• SunSpec modbus certified with the latest SunSpec models
• Supports operation in parallel with a generator and allows teh generator to function as the grid source if utility power is lost
• Optional integrated revenue-grade meter and external energy meter for production & consumption monitoring and export power control
• Offers all of the smart inverter functions detailed in IEEE 1547-2018
• Utilizes an energy management system that maximizes efficiency and offers multiple modes of operation for performance customization
• SolisCloud allows for remote system troubleshooting, firmware upgrading, and configuration, reducing O&M costs
• Bi-direcitonal capacity can allow the battery to charge from the grid

Safe and Reliable

• UL 1741SA/SB and UL9540 certified
• California Rule 21 and HECO rule 14H Compliant
• Sophisticated alarm system ensures the system operates only under safe conditions and warns you immediately if there is an issue
• Third-party tested and validated for product reliability
• A stardard 10-year standard warranty is included
• NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown
• External RSD & Emergency power off switch options are also available
